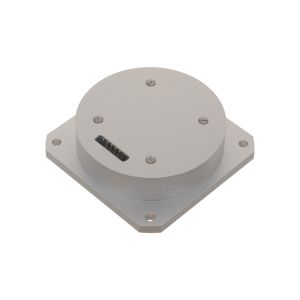

Designed for precision motion sensing, the MFOG-103 combines micro-nano optical technology with advanced electronic feedback control.
It achieves bias stability ≤1°/h, bandwidth ≥1000Hz, and power ≤1W, ensuring accurate angular rate measurement even under harsh vibration and shock.
With its small form factor (60×60×17mm) and light weight (≤80g), it can be easily integrated into compact systems.
Fully equivalent to Fizoptika VG103, suitable for UAV attitude control, land navigation systems, and autonomous robotics.
The product is mainly composed of the following components:
A) an optical path assembly;
B) Detection and control signal circuit board;
C) Optical fiber coil skeleton, shell and other structural parts;
4.3 Appearance and dimension
The overall dimension of the product is 60 mm × 60 mm × 17 mm (including flange, excluding plug).
4.4 Weight
≤80g.
4.5 Operating temperature
-40℃~+70℃.
4.6 Storage temperature
-55℃~+85℃.
4.7 Random vibration
Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.
4.8 Main performance parameters
Table 1 Main Performance Parameters
| Serial number | Project | Performance indicators |
| 1 | Range (°/s) | ±350 |
| 2 | Scale factor (mV/ o /s) | 6±0.6 |
| 3 | Zero-bias stability (10s, 1σ, o /H) | ≤1 |
| 4 | Zero-bias repeatability (1σ, o /H) | ≤1 |
| 6 | 3dB Bandwidth (Hz) | ≥1000 |
| 7 | Random walk ( o /√ H) | ≤0.02 |
| 8 | Power supply (V) | 5+0.25 |
| 9 | Power Consumption (W) | ≤1 |
| 10 | Impact (g) | ≥1500 |
| 11 | Acceleration (g) | ≥70 |
| 12≤1°/h | Service Life (years) (calculated assessment) | ≥15 |
| 13 | MTBF (Calculated Assessment) | ≥100000 |
4.9 Mechanical and electrical interfaces
The bottom surface of the product is the installation surface, and the overall dimensions and installation interfaces are as follows:
