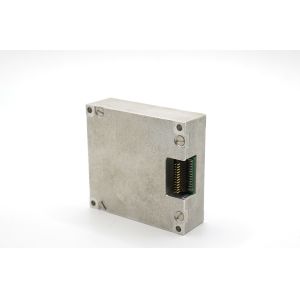

ADIS16488HA is a compact, lightweight MEMS IMU with three-axis gyroscope and accelerometer, measuring ±450°/s angular rate and ±20 g acceleration. Zero-bias instability is 0.3°/h for the gyro and 0.25 mg for the accelerometer, with minimal random walk and 100–500 ppm scale factor linearity. Temperature, misalignment, and nonlinear error compensation ensure reliable performance from -45~85 °C. SPI communication at 8–15 MHz, 1.5 W power consumption, 250 Hz bandwidth, and 0.1 % cross-coupling make it ideal for UAVs, robotics, industrial automation, mobile mapping, and precision navigaion systems.
Technical Parameters
| Parameter | Test conditions | Minimum value | Typical value | Maximum value | Unit | |
| Dynamic measuring range |
|
| ±450 |
| º/s | |
| Zero-bias instability | Allan variance, better than |
| 0.3 |
| º/h | |
| Zero bias stability | 10s smooth, RMS, better than |
| 3 |
| º/h | |
| Zero bias in full temperature range | -40 ℃ ~ 85 ℃, 10 s smooth, rms |
| 20 |
| º/h | |
| Random walk | 1σ |
| 0.15 |
| º/√h | |
| Zero-bias repeatability | 1σ |
| 5 |
| º/h | |
| Scale factor repeatability | 1σ |
| 100 |
| ppm | |
| Scale factor nonlinearity | 1σ |
| 100 |
| ppm | |
| Bandwidth (-3dB) |
|
| 250 |
| Hz | |
| Cross coupling |
|
| 0.1 |
| % | |
| Resolution |
|
| 2 |
| º/h | |
| Acceleration sensitivity |
|
| 2 |
| °/h/g | |
| Accelerometer | Dynamic measuring range |
|
| ±20 |
| g |
| Zero bias stability | Allan variance |
| 0.07 |
| mg | |
|
|
|
|
|
|
| |
| Zero bias in full temperature range | -40 ℃ ~ 85 ℃, 10 s smooth, rms |
| 3 |
| mg | |
| Zero bias stability | 10s smooth, RMS, better than |
| 0.25 |
| mg | |
| Random walk | 1σ |
| 0.029 |
| m/s/√h | |
| Zero-bias repeatability | 1σ |
| 0.5 |
| mg | |
| Scale factor repeatability | 1σ |
| 500 |
| ppm | |
| Scale factor nonlinearity | FS=20g |
| 500 |
| ppm | |
| Bandwidth (-3dB) |
|
| 250 |
| Hz | |
| Cross coupling |
|
| 0.1 |
| % | |
|
Communication Interface |
1-way SPI |
Enter the clock frequency |
|
8 |
15 |
MHz |
| Electrical characteristics | Voltage | Direct current |
| 3.3 |
| V |
| Power consumption |
|
| 1.5 | 1.5 | W | |
| Ripple | P-P |
| 48±2 | 100 | mV | |
| Use environment | Operating temperature |
| -45 |
| 85 | ℃ |
| Storage temperature |
| -55 |
| 85 | ℃ | |
outline drawing
Connector
axial direction
