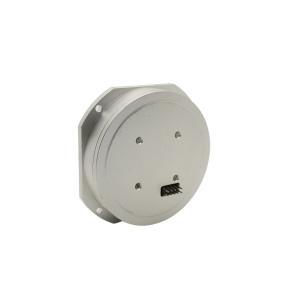

Designed for precision measurement, the MFOG-910 micro-nano fiber optic gyroscope employs high-performance micro-nano optical components to achieve superior angular velocity detection. Its integrated optical, mechanical, and electronic design provides stable operation with fast startup and no moving parts. Applications: Laboratory experiments, motion analysis platforms, robotics, and academic research in inertial sensing.
The product is mainly composed of the following components:
The overall dimension of the product is 82mm * 82mm * 19.5mm (without plug).
≤150g.
-40℃~+70℃.
-55℃~+85℃.
Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.
Table 1 Main Performance Parameters
| Serial number | Project | Performance indicators |
|---|---|---|
| 1 | Range (°/s) | ±240 |
| 2 | Scale factor (mV/ o /s) | 47±5 |
| 3 | Scale factor nonlinearity (ppm) | ≤1000 |
| 4 | Zero-bias stability (10s, 1σ, o /H) | ≤0.8 |
| 5 | Zero-bias repeatability (1σ, o /H) | ≤0.8 |
| 6 | 3dB Bandwidth (Hz) | ≥1000 |
| 7 | Random walk ( o /√ H) | ≤0.02 |
| 8 | Power supply (V) | 5+0.25 +12 |
| 9 | Power Consumption (W) | ≤1.5 |
| 10 | Impact (g) | ≥1500 |
| 11 | Acceleration (g) | ≥70 |
| 12 | Life (years) (calculated assessment) | ≥15 |
| 13 | MTBF (Calculated Assessment) | ≥100000 |
The bottom surface of the product is the installation surface, and the overall dimensions and installation interfaces are as follows:
